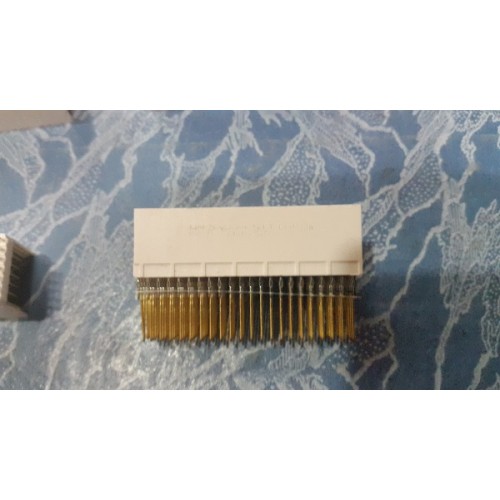

Conn Hard Metric M 110 POS 2mm Press Fit ST Thru-Hole
Part Details:
- Manufacturer: FCI
- Part No: HM2P66PK5111GF
-
Category: Interconnect>Connectors>Backplane / Hard Metric / DIN
- Datasheet:FCI - HM2P66PK5111GF
Part Specifications:
| Type | Hard Metric |
| Pitch (mm) | 2mm |
| Gender | M |
| Body Orientation | Straight |
| Number of Contact Rows | 5 |
| Number of Contacts | 110POS |
| Termination Method | Press Fit |
| Mounting Style | Through Hole |
| Contact Plating | Gold Over Nickel |
| Contact Resistance Max | 20mOhm |
| Voltage Rating Max | 750VAC |
| Current Rating (Max) | 1.5/ContactA |
| Operating Temp Range | -55C to 125C |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| Product Height (mm) | 13.45mm |
| Product Depth (mm) | 15.4mm |
| Product Length (mm) | 43.9mm |
FCI
- Product Code: HM2P66PK5111GF
- Availability: 100
This product has a minimum quantity of 10
Tags: HM2P66PK5111GF, HM2966PK, MODULAR CONNECTORS
